Acetylene (C2H2) is a colorless, highly flammable gas.

Applications

Used in optical spectrometry as an instrumentation gas; used in atomic absorption for elemental analysis as an instrumentation gas. Used as a fuel gas in atomic absorption spectrometry for elemental analysis.

Materials Compatibility

Metals: Stainless Steel; Carbon Steel; Aluminum; Monel; Brass (Low Copper)
Plastics: Kel-F®; PTFE, FEP, and PFA Fluoropolymers resins; Tefzel®; Kynar®
Elastomers: Kalrez®; Viton®; Buna-N; Neoprene; Polyurethane

Acetylene is a colorless and tasteless gas with a garlic-like odor. It is flammable and can be an asphyxiant. In order to prevent explosive decomposition, acetylene is supplied in cylinders filled with a porous mass packing material that is saturated with acetone or other suitable solvent in which the acetylene is actually dissolved. The specifications shown are on a solvent free basis.

The specifications for acetylene are found in the Compressed Gas Association (CGA) Pamphlet G-1.1. Grade D is considered commercial acetylene.

(Units in ppm (v/v) unless show otherwise)

Limiting Characteristics CGA G-1.1
Grade D
Typical
Acetylene Minimum, % 98 98.8
Phosphine 50 .04%
Arsine None
Hydrogen Sulfide 50 None
Total Sulfur (calculated as H2S) .006%
Clorine (combined) None
Oxygen .01 – .1%
Nitrogen .02 – .2%
Hydrogen Trace
Methane Trace
Ammonia None
Stibine .0007%

Certain acetylene plants do not purify the generated acetylene since for most purposes there is no demand for high purity acetylene.

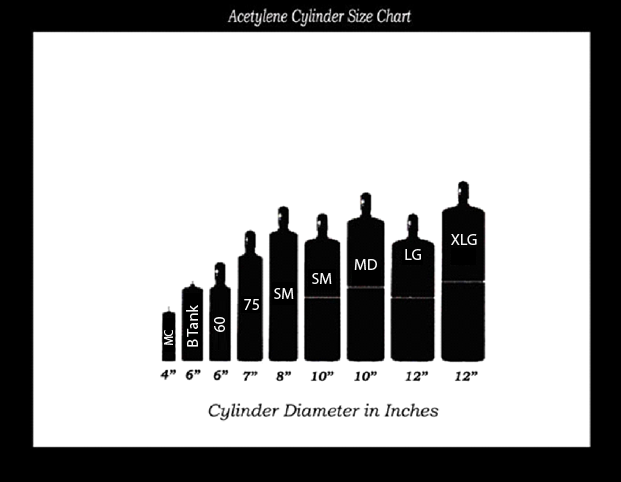

acetylene_sizes
